See the parts.
Define your own.
Representative stainless steel component families. These AI-generated illustrations explain shapes and manufacturing ideas; they are not photographs of customer orders.
Mounting & Base Plates
Flat mounting interfaces with holes, slots and service openings. Individual drawings define the envelope, plate thickness and fixing datums.
Find Dimensions & Part Details

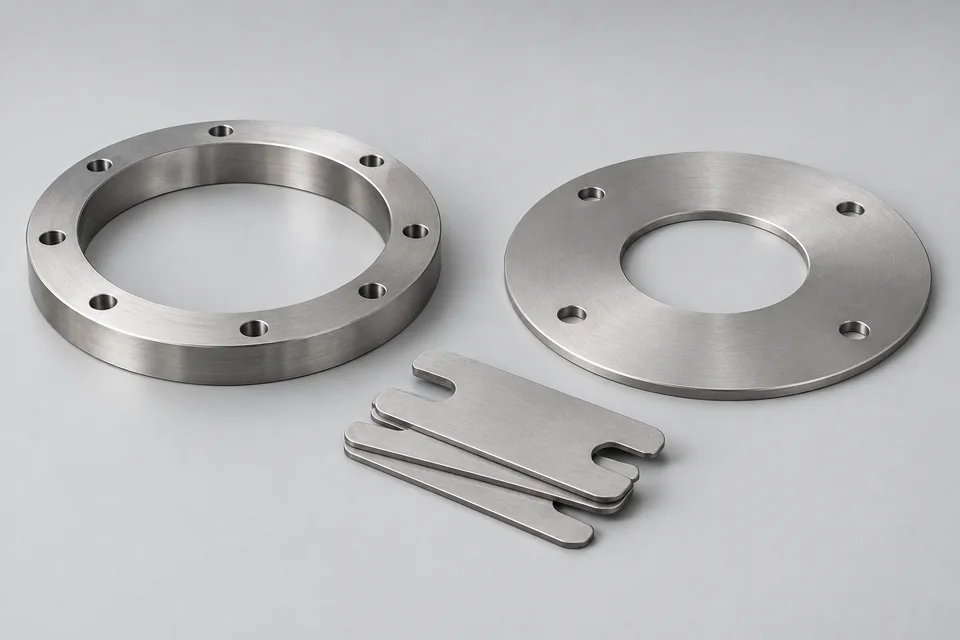

Rings, Flanges & Shims
Annular profiles, custom bolt patterns and thickness-controlled spacers. Specify the mating opening and the role of the contact surface.
Find Dimensions & Part Details

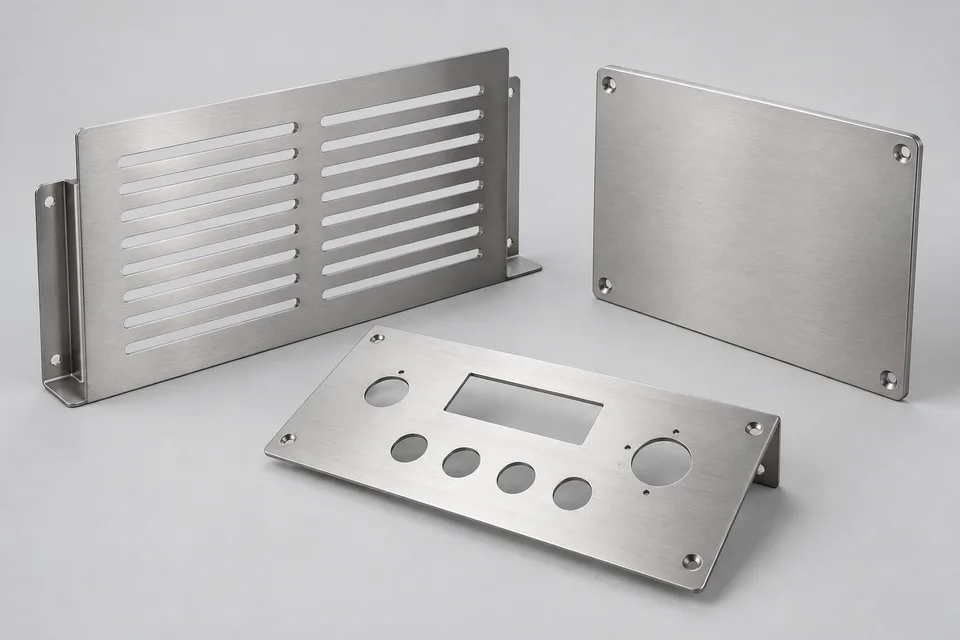

Panels & Faceplates
Ventilation patterns, removable access plates and device cutouts. Visible finish and opening locations belong in the specification.
Find Dimensions & Part Details

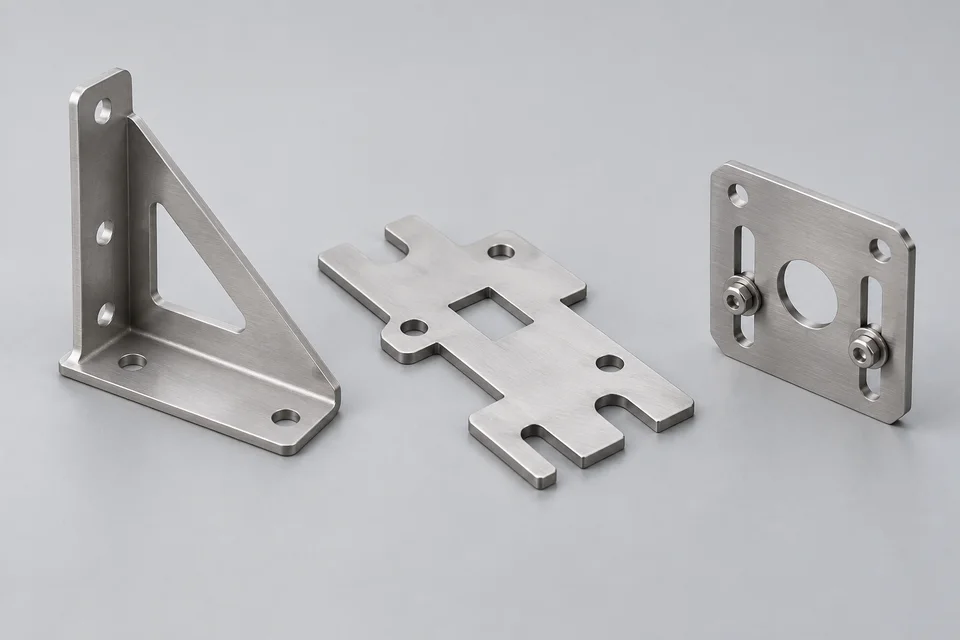

Profiles & Mounting Supports
Shaped profiles and mounting supports for customer-designed assemblies. Tabs, slots and any formed or joined details need a complete drawing.
Find Dimensions & Part Details
Angle & Sensor Brackets
Bent mounting interfaces with fixing holes or adjustment slots. State the final leg dimensions, bend radius and mounting orientation.
Find Dimensions & Part Details

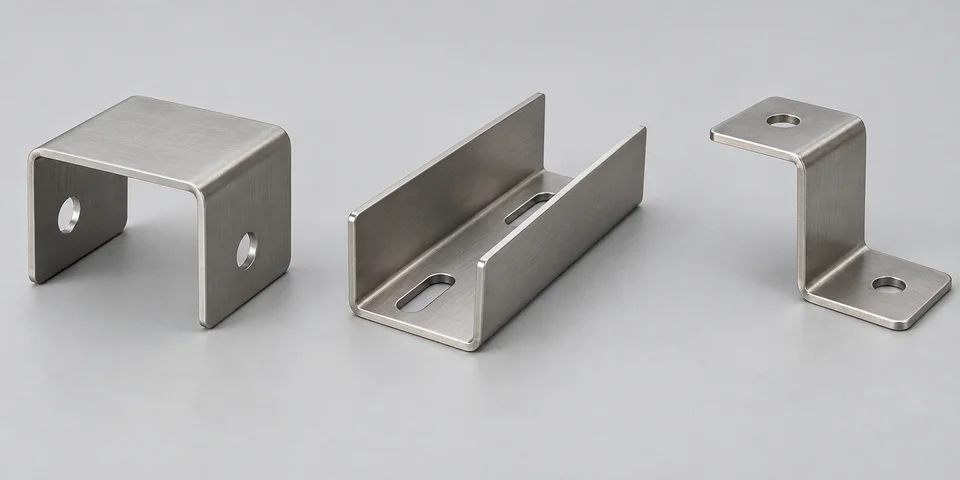

Channels & Offset Brackets
U-shaped supports and Z-shaped offset parts. Inside clearance and the relationship between mounting faces define the finished component.
Find Dimensions & Part Details

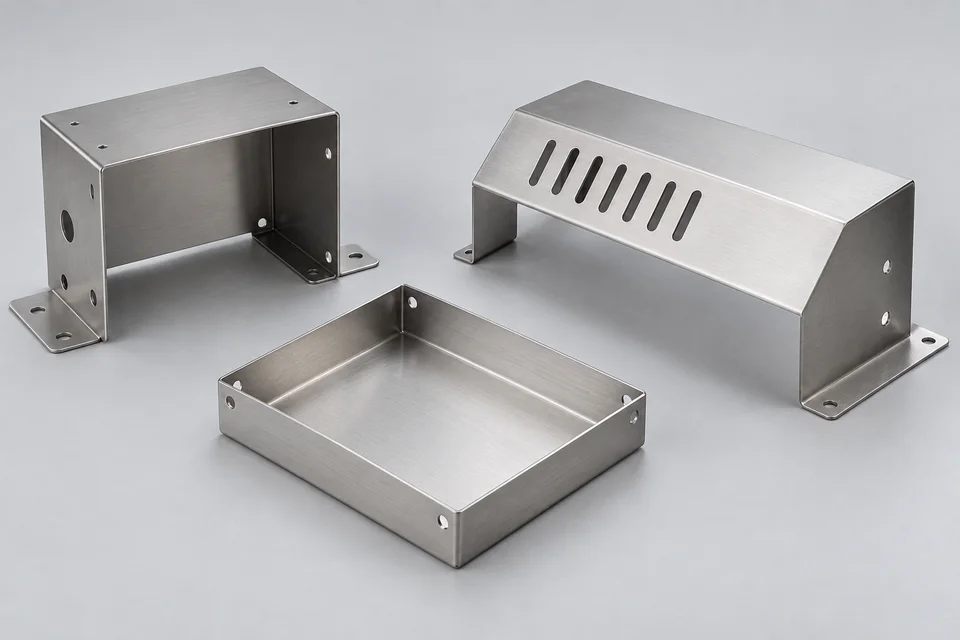

Covers, Shells & Trays
Folded sheet-metal geometries with customer-defined corners, mounting tabs and openings. Describe joining and closure requirements separately.
Find Dimensions & Part Details

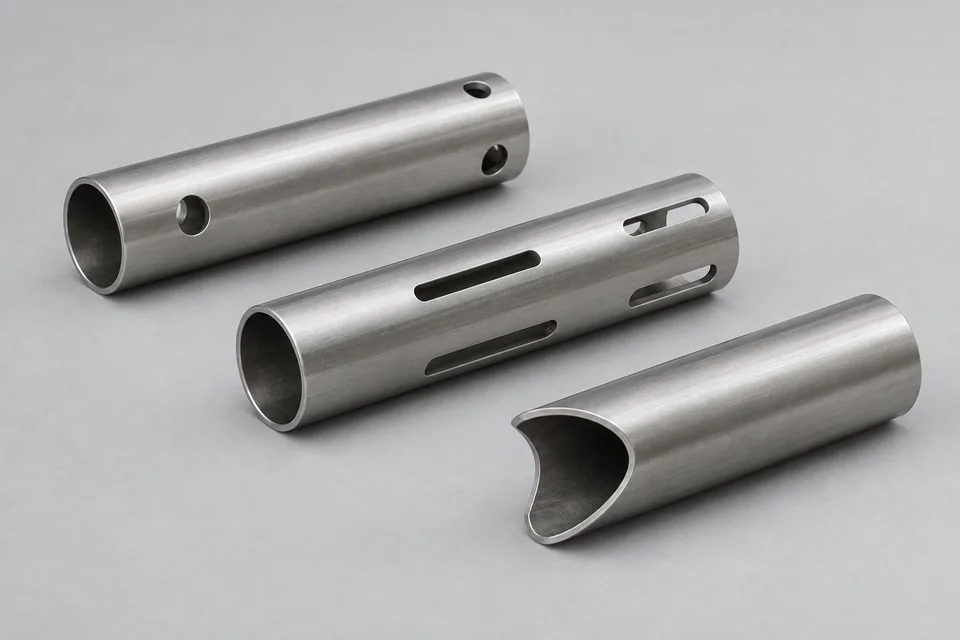

Round Tube Components
Circular hollow sections with transverse holes, slots or saddle-cut ends. Define axial positions and feature orientation around the tube.
Find Dimensions & Part Details
Square & Rectangular Tube Parts
Hollow profiles with indexed openings, slots or angled ends. Identify the wide and narrow faces and the finished-length convention.
Find Dimensions & Part Details

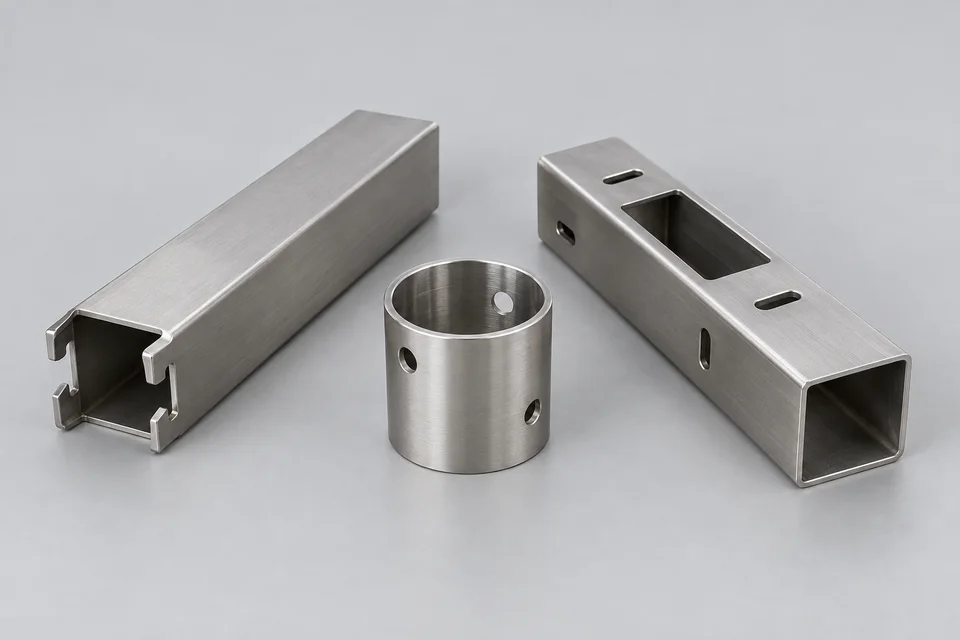

Tube Joints & Sleeves
Positioning tabs, receiving slots, access openings and short sleeve sections. Include mating geometry and assembly clearances.
Find Dimensions & Part DetailsThe final shape comes from your drawing.
Send the original dimensions, grade, thickness, quantity and any fit or appearance requirements. We review the actual component and the required manufacturing operations.
